CNC machining in Brass
Low friction, excellent electrical conductivity, golden appearance. Brass is a metal alloy with good machinability and excellent electrical conductivity. Ideal for applications that require low friction.

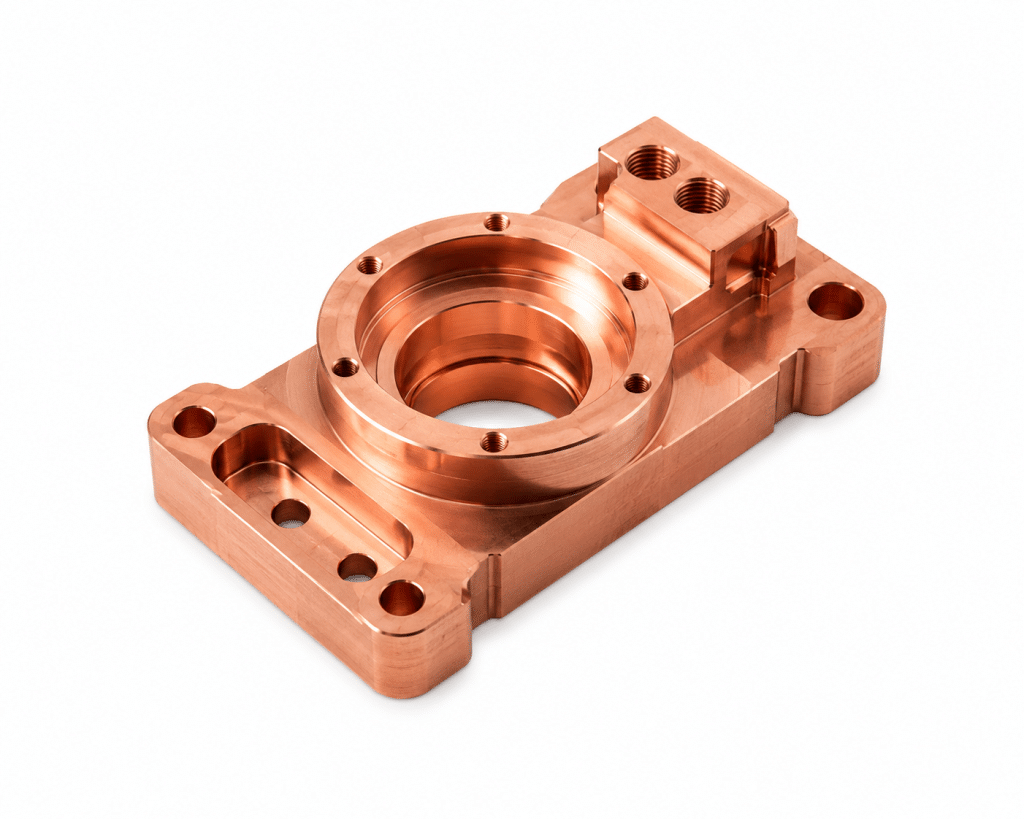

Brass CNC Machined Parts Gallery
Welcome to our Brass CNC Machining Gallery, showcasing the high-quality components we have manufactured for various industries.
Comparing Brass Grades: Your Guide to Precision Machining
Compare mechanical properties, machinability, and applications of popular brass alloys for CNC machining
| Grade | Composition | Tensile Strength | Yield Strength | Hardness | Machinability | Applications |
|---|---|---|---|---|---|---|
|
C360 Free-Cutting Brass Most Popular |
61.5% Cu 35.5% Zn 3.0% Pb |
338-469 MPa 49-68 ksi |
124-310 MPa 18-45 ksi |
55-80 HRB Soft-Half Hard |
100% Rating |
|
|
C260 Cartridge Brass |
70% Cu 30% Zn |
303-896 MPa 44-130 ksi |
76-448 MPa 11-65 ksi |
45-82 HRB Annealed-Spring |
30% Rating |
|
|
C464 Naval Brass Marine Grade |
60% Cu 39.2% Zn 0.8% Sn |
379-607 MPa 55-88 ksi |
172-455 MPa 25-66 ksi |
58-85 HRB Soft-Hard |
30% Rating |
|
|
C69300 Silicon Brass (Eco Brass) Lead-Free |
75% Cu 21.4% Zn 3% Si |
517-655 MPa 75-95 ksi |
241-379 MPa 35-55 ksi |
70-92 HRB Half Hard-Hard |
80% Rating |
|
|
C385 Architectural Bronze |
57% Cu 40% Zn 3% Pb |
414 MPa 60 ksi |
138 MPa 20 ksi |
65 HRB Half Hard |
90% Rating |
Data Source: ASM International Handbook Volume 2, MatWeb Material Property Data. Values shown for typical temper conditions. Contact us for specific material certifications.
Best Machinability
C360
100% machinability rating standard
Best Corrosion Resistance
C464
Dezincification resistant
Highest Strength
C69300
Up to 655 MPa tensile
Lead-Free Option
C69300
NSF/ANSI 61 certified
Brass Machining Surface Finish Options
We provide various surface treatment solutions to enhance the functionality and aesthetics of precision brass components.
As Machined
Smooth surface with visible tool marks. Surface roughness (Ra) 6.3-12.5 μin. Cost-effective solution for functional parts.
Polishing/Buffing
The bright golden appearance is a highlight. Surface roughness (Ra) 8-16 μin. Excellent for high-end decorative components.
Brushed/Satin
Features directional grain textures. Effectively masks fingerprints and minor scratches. Ideal for premium hardware.
Nickel Plating
Offers superb rust prevention and durability. Available in bright and matte finishes to suit different design needs.
Chrome Plating
Highly reflective with high gloss. Features exceptional hardness and scratch resistance for heavy-duty applications.
Passivation
A chemical treatment that enhances corrosion resistance while preserving the original metallic aesthetic of the brass part.
Expert Brass CNC Machining Service: Technical Resources
Detailed material properties and machining standards for our most common brass alloys.
C3604 / CC3604
Industry standard for high-speed machining with 100% machinability rating.
Download PDFH59 (GB Standard)
Economical high-strength duplex brass (~59% Cu) for structural components.
Download PDFH62 (GB Standard)
Balanced ductility and strength, ideal for complex cold-working and forming.
Download PDFC210 (C21000)
95% Copper alloy with superior conductivity and a distinctive deep red color.
Download PDFC220 (C22000)
90% Copper content providing excellent thermal stability and warm aesthetics.
Download PDFC230 (C23000)
Outstanding corrosion resistance for architectural and plumbing applications.
Download PDFBrass machining
Brass is one of the easiest metals to machine, making it great for CNC machining. Brass also has other very useful properties making it great for different industries such as plumbing, electrical and medical. Overall, it has great durability. It being so versatile and easy to work with is what makes it such a common metal for parts in a wide variety of applications. CNC machined Brass parts begin as a raw piece of metal which is cut down bit by bit to create a desired shape or object. This process is done most accurately with a CNC (Computerized Numerical Control) machine which can produce almost any three dimensional object designed via CAD (Computer Aided Design) software.
Brass machined parts
We offer a complete CNC machining service for brass parts and can produce complex Brass parts in Brass C360. Brass parts are great for applications that require high strength, corrosion resistance, a low friction coefficient, electrical conductivity and overall versatility. We work with almost every kind of CNC mill and turning center, and are able to machine whatever you need, from simple, ‘as-machined’ workholdings to complex, organic geometries with tight tolerances. When creating Brass machined parts with us, you can apply up to 6 different post-processing/surface finishing options including bead blasting, powder coating, smooth machining and polishing.
